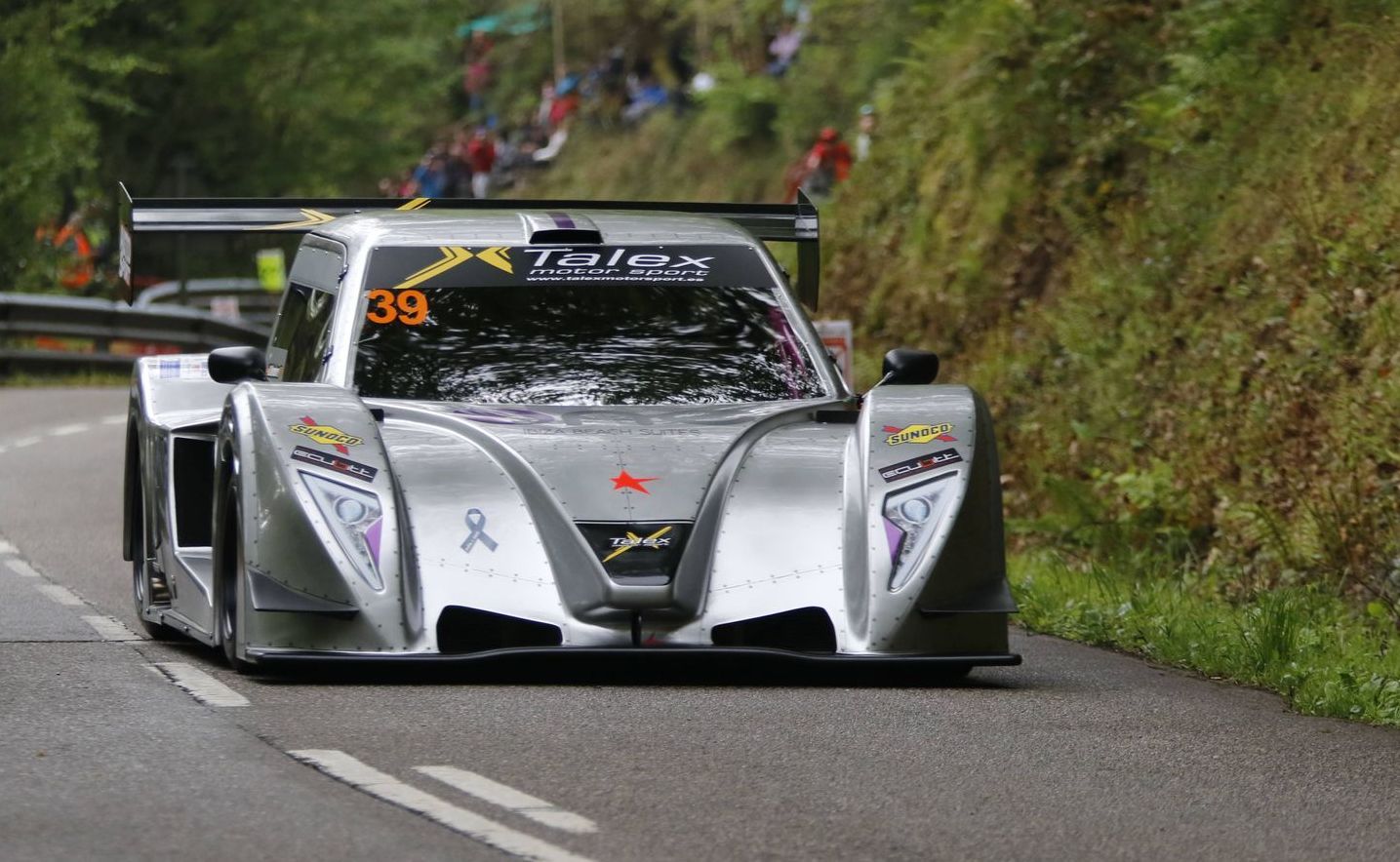

CM PLUS




Dimensions:
Length/width/height/axle distance: 3750 / 1750 / 1030/ 2535
Engine:
Kawasaki 1400cc injection with adjustable control unit, up to 250 HP.
Weight:
490Kg
Bodywork:
Fiberglass 5 pieces, fiberglass aerodynamic elements.
Steering system:
1 assisted lock-to-lock turn (optional).
Gearbox:
Sequential 6 speeds with paddles on the steering wheel, (up and down gears without clutch) Cut-off and reverse gear.
Transmission:
Reinforced chain, or transmission group without chain (optional).
Differential:
Self-locking discs.
Front - rear suspension:
Double overlapping wishbones, with adjustable links and push-rod compression transmission, Tecnoshock shock absorbers, 3-way adjustable On-board.
Braking system:
Double hydraulic circuit with brake distributor, AP Racing 268ø front and rear discs, AP Racing double piston calipers.
Rims and tires:
Front - R13x up to 8" with Avon 8 -20.0 -13" tires.
Rear - R13x up to 9.5", with Avon 9.2-22.0-13" tires.
Extra options:
F1 type steering wheel with digital display and gear engaged display.
Electric power steering.
Gear transmission group (chain replacement).
Fiberglass or carbon cabin floor.
Rear spoiler, front splitter, and rear diffuser in carbon.
