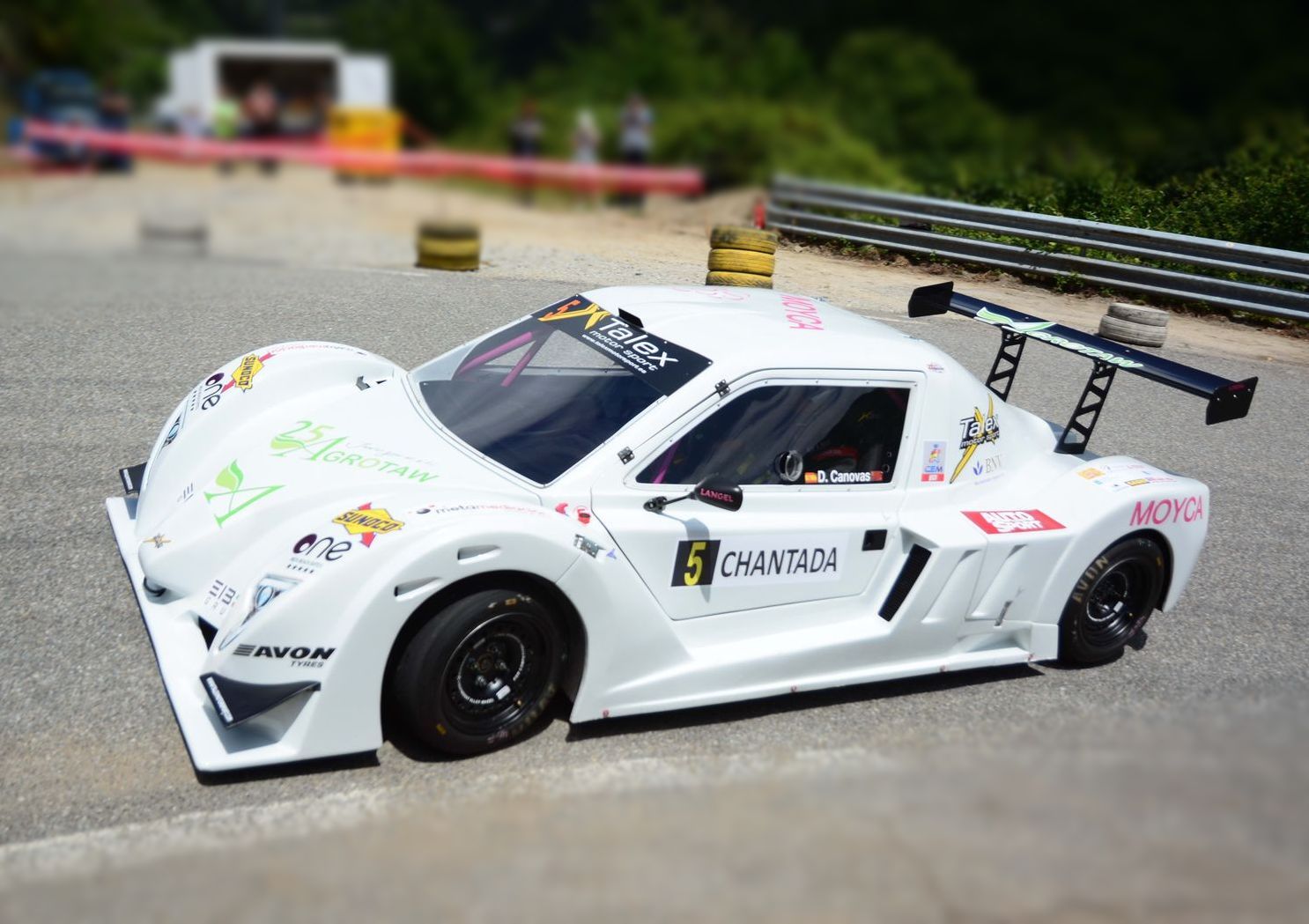

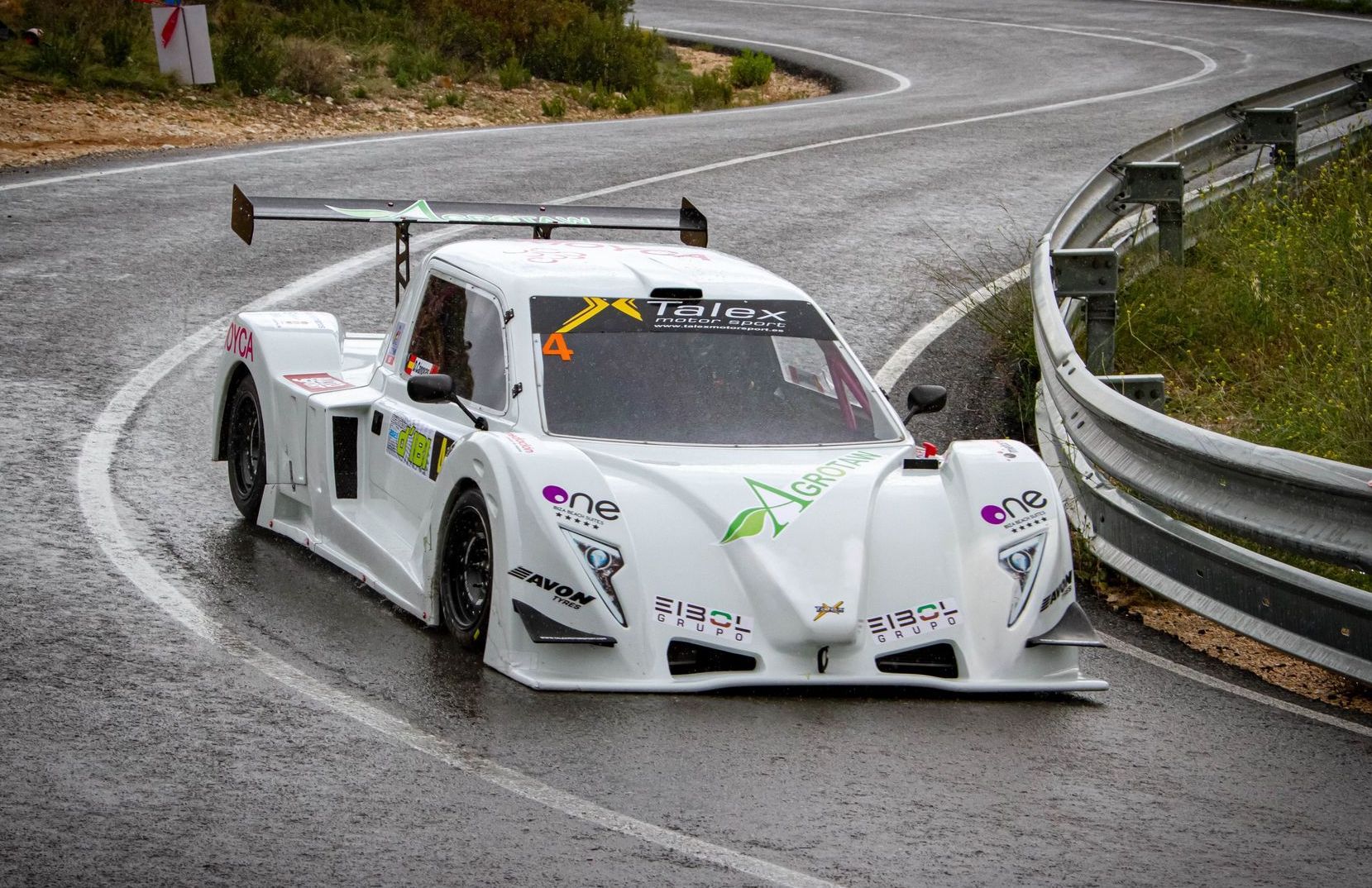

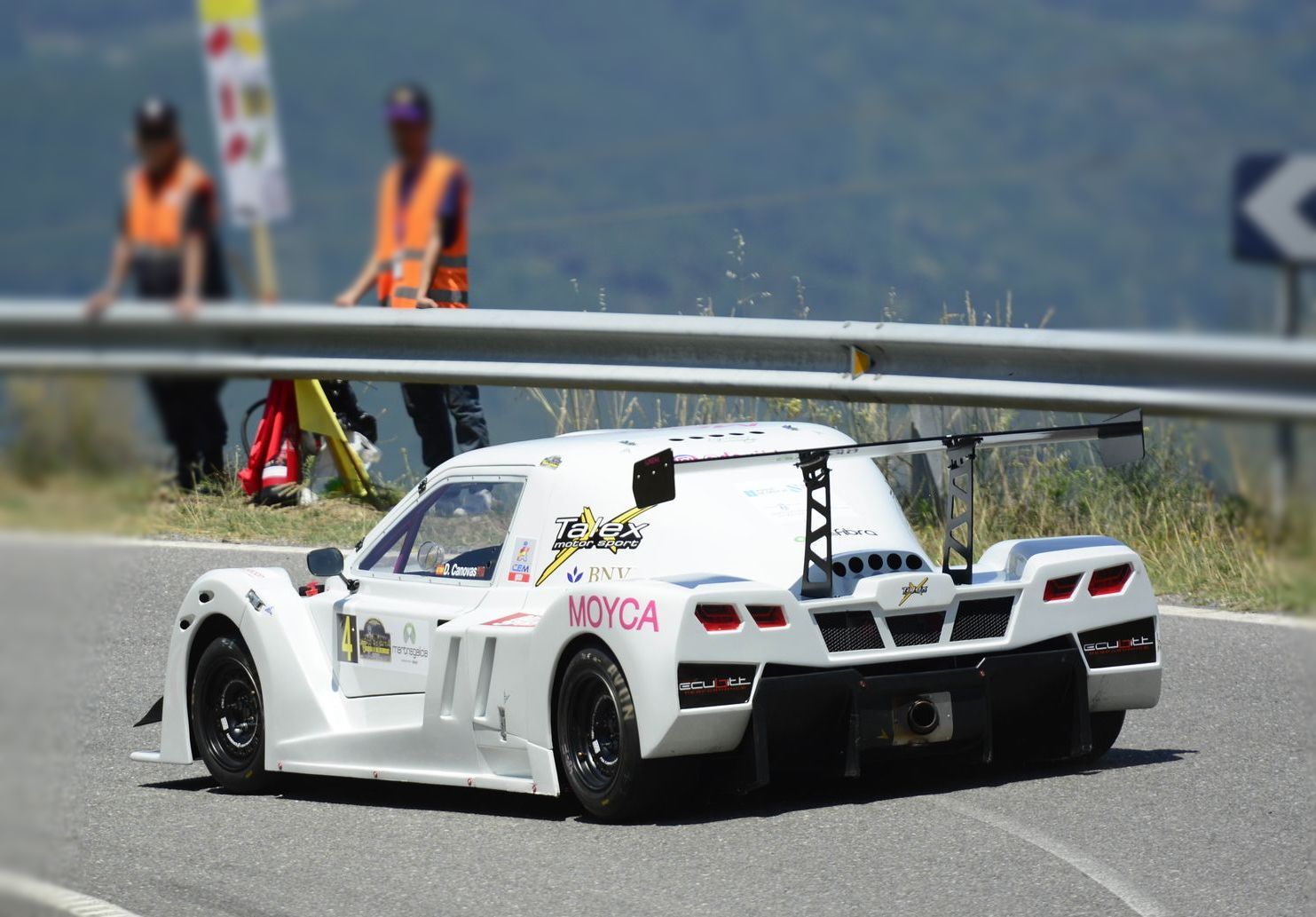

Designed and developed for young drivers between 16 and 20 years old, who will be able to compete in the new CM JUNIOR SPANISH CUP category created by the Rfeda, and for the RACE single-seater trophy.
It is a cm with promotional approval, installed the Junior Kit, with adjusted control unit and restrictor flanges according to regulations, limited to 150hp.
Dimensions:
Length/width/height/axle distance: 3750 / 1750 / 1030/ 2535
Engine:
Suzuki 1000cc injection with adjustable control unit, limited by regulating flanges to 150 HP according to regulations.
Weight:
490Kg
Bodywork:
Fiberglass 5 pieces, fiberglass aerodynamic elements.
Steering system:
1 assisted lock-to-lock turn (optional).
Gearbox:
Sequential 6 speeds with Cut-off and reverse.
Transmission:
Reinforced chain, or transmission group without chain (optional).
Differential:
Self-locking discs.
Front - rear suspension:
Double overlapping wishbones, with adjustable links and push-rod compression transmission, Tecnoshock shock absorbers, 3-way adjustable On-board.
Braking system:
Double hydraulic circuit with brake distributor, AP Racing 268ø front and rear discs, AP Racing double piston calipers.
Rims and tires:
Front - R13x7" with Avon 7 -20.0 -13" tires.
Rear - R13x8.5", with Avon 8.2-22.0-13" tires.
Extra options:
F1 type steering wheel with digital display and gear display
in Granada.
Electric power steering.
Gear transmission group (chain replacement).
Fiber cabin floor.
Young but promising track record.
